E-TYPE and EI-TYPE professional semi-automatic impulse sealers
with electrical foot pedal and digital control
Working performance with NEW definition
The NEW E-TYPE is super strong, very fast and absolutely reliable. Modular thinking and simplification!
A range of professional semi-automatic sealing machines that can be used to securely seal filled bags or produce bags from roll material, suitable for sealing PE, PP, PVC, or any other laminated film with sealable inside layer.
Impulse controlled sealing assures high working safety and the sealing wire gets hot ONLY when the sealing bars are closed and in sealing cycle. This provides a high level of safety at work and offers an envirementally friendly – energy saving
- solution. The machine connect to a 230 V (the USA versions to 110V) power supply.
The E-TYPE machine range is produced in four sizes, with sealing lengths ranging from 420 mm to 1320 mm.
Technical data
| Technical data |
|
|
Normal sealing | Normal sealing | ||||||
| 420 | 620 | 1020 | 1320 | |||||||
| Max. sealing length (mm) | 420 | 620 | 1020 | 1320 | ||||||
| Max. sealing length (inch) | 16" | 24" | 40" | 52" | ||||||
| Sealing width (mm) |
|
|
5 | 5 | ||||||
| Max. film thickness (µm) |
|
|
500 | 500 | ||||||
| Max. sealable film width (mm) | 410 | 610 | 1010 | 1310 | ||||||
| Max. cutting width (mm) | 410 | 610 | 1010 | 1310 | ||||||
| IP protection class (IP) | IP33 (with option IP34 or IP43) | |||||||||
| Electrical connection (V, Hz) | 230 V - 50/60 Hz or 110 V - 60 Hz | |||||||||
| Max. power consumption* (W) |
|
|
1500 | 2000 | ||||||
| Size of machine (LxWxH) (mm) | 600x215x255 | 800x215x255 | 1200x215x255 | 1500x215x255 | ||||||
| Size complete (LxWxH) (mm) | 600x560x1130 | 800x560x1130 | 1200x560x1130 | 1500x560x1130 | ||||||
| Weight of machine (kg) | 18 | 22 | 29 | 34 | ||||||
| Weight complete** (kg) | 32 | 38 | 50 | 59 | ||||||
| *while sealing (in standby mode, power consumes is 20 W for all types) **includes stand, foot pedal and working table |
Electrical plug: EU plug standard; UK and USA plug as option available Power supply (V/Hz): 230 V 50/60 Hz standard; 110 V 50 Hz as option available |
|||||||||
Sealing explanation
Impulse controlled sealing: the sealing wire gets hot ONLY when the sealing bars are closed and in sealing cycle
All machines from the E-TYPE professional semi-automatic impulse heat sealers / poly bag sealers family work with a 5 mm (app. 0,2 inch) wide impulse sealing wire. The sealing length depends always on the size of the machine. All thermoplastic (heat sealable) films up to 500 micron or 800 micron total material thickness can be sealed easily and air tight depending on machine functions. The total surface of the sealing wire is PTFE tape coated. This avoids sticking of the bag material to the sealing wire.
Materials suitable for sealing:
• PE (LDPE, HDPE), PP, PA, PVC, BOPP and other thin laminated films
• ALU (aluminium with sealable layer inside) - EB-TYPE only and test sealing is recommended
• and any other laminated films that have a thermoplastic film inside
Sealing type for E-TYPE and EI-TYPE machines:
Single sealing (makes only one sealing on the bag and seals from one side)
5 mm (app. 0,2 inch) sealing (up to 500 μm)
Sealing type for EB-TYPE and EIB-TYPE machines:
Bi-active sealing (makes sealing on the bag and seals from both sides)
5 mm (app. 0,2 inch) sealing (up to 800 μm)
Suggested for sealing very thick or very dusty bags
Sealing type for ED-TYPE and EID-TYPE machines:
Double sealing (makes two sealings on the bag and seals from one side).
2 x 5 mm sealing (up to 500 μm)
Suggested for sealing dusty or contaminated bags
Safety cutting knife system
All the E-TYPE and EI-TYPE professional semi-automatic impulse heat sealers / poly bag sealers have an integrated specially designed safety cutting knife system. This cutting knife system enables to produce bags from tube film or to cut the rest of the film off the bag after sealing.
• Solid built up• Changeable cutting blade
• Dual edged blade
In order to activate the cutting knife the operator has to push down the knife and move it along the complete sealing bar length. After releasing the knife it will slide back into its safe position.
Operation of the E-TYPE sealers
The sealing wire of the film sealing machine – poly bag sealer heats up only when the sealing bars are closed. The sealing is activated when the sealing bars are totally closed. The operator have to close the sealing bars with electrical foot pedal. The motor starts to close the sealing bar till the electromagnet turns on and holds the sealing bar down during the sealing and cooling cycles.
There are sealing and cooling times are electrically controlled and independently adjustable from 0 to 9. The sealing is started only when the sealing bars are totally closed and open when the sealing wire is cool down. NO risk of getting burn injuries. If the hand is between the sealing bars while closing then the motor will open again without force!
Digital temperature control with ASCC - Adapted Sealing Cycle Control
Dependent from the working cycle speed, the sealing machine will adapt itself automatically in sealing and cooling time to the adjusted parameters.
• No more overheating of sealing wires
• No readjustment of parameters at continues work is needed.
In standby mode the machine consumes only app. 20 W / hour (energy saving
) electrical power).
Safety – adjustable lock with special key combination.
The machine is designed to seal filled bags and produce bags from rolls.
Security lock system for high operational safety:
The sealing, cooling and function settings can be locked with the using of an own password. After activating the security lock, the settings can not be modified only after the security lock is inactivated.
Machine frame
E-TYPE: Orange painted for general industry
EI-TYPE: INOX for food, pharmaceutical and chemical industry
Accessories
Every machine has its own size of the following accessories:
sealer only - tabletop use
sealer with roller - tabletop use
sealer with table - tabletop use

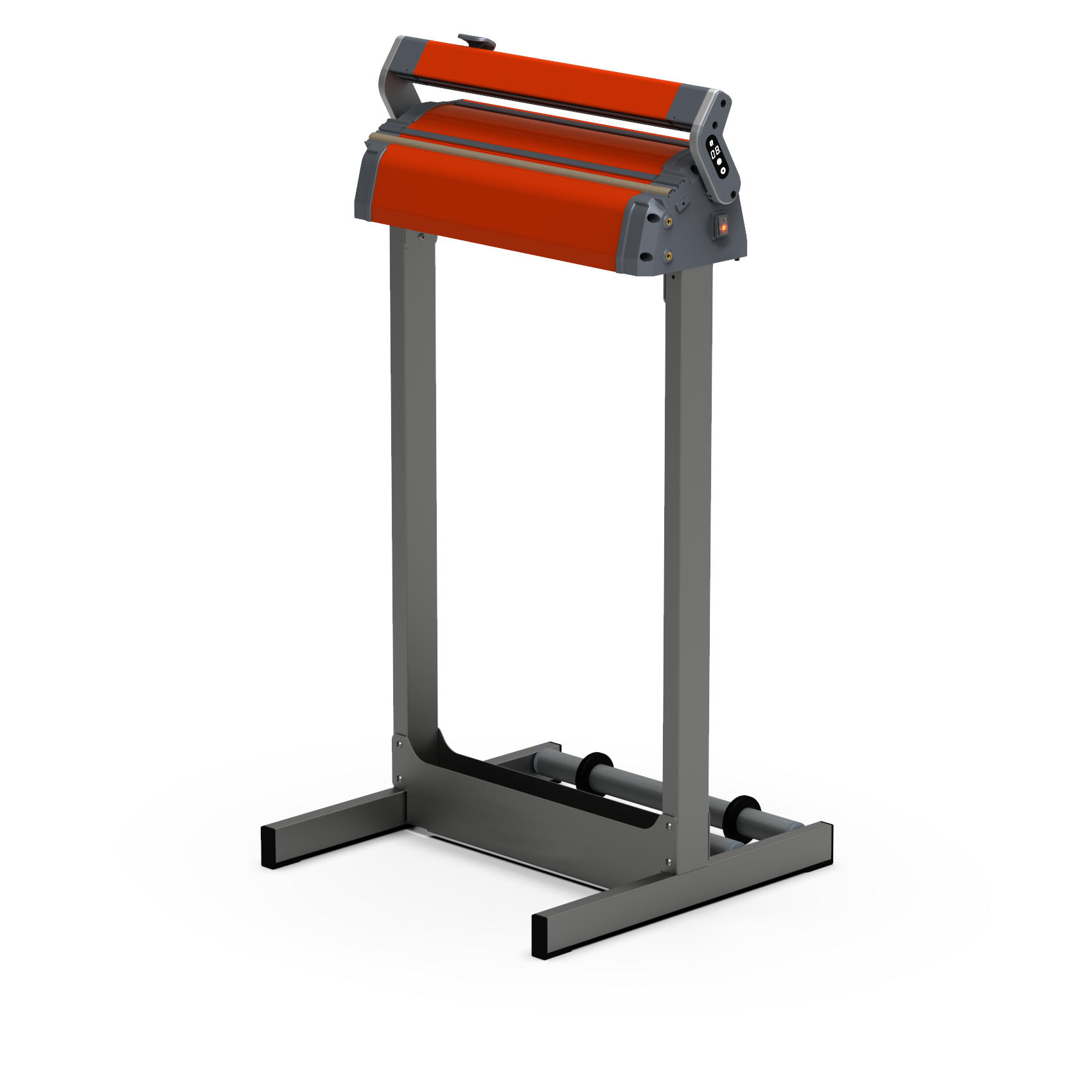

sealer with support and foil holder

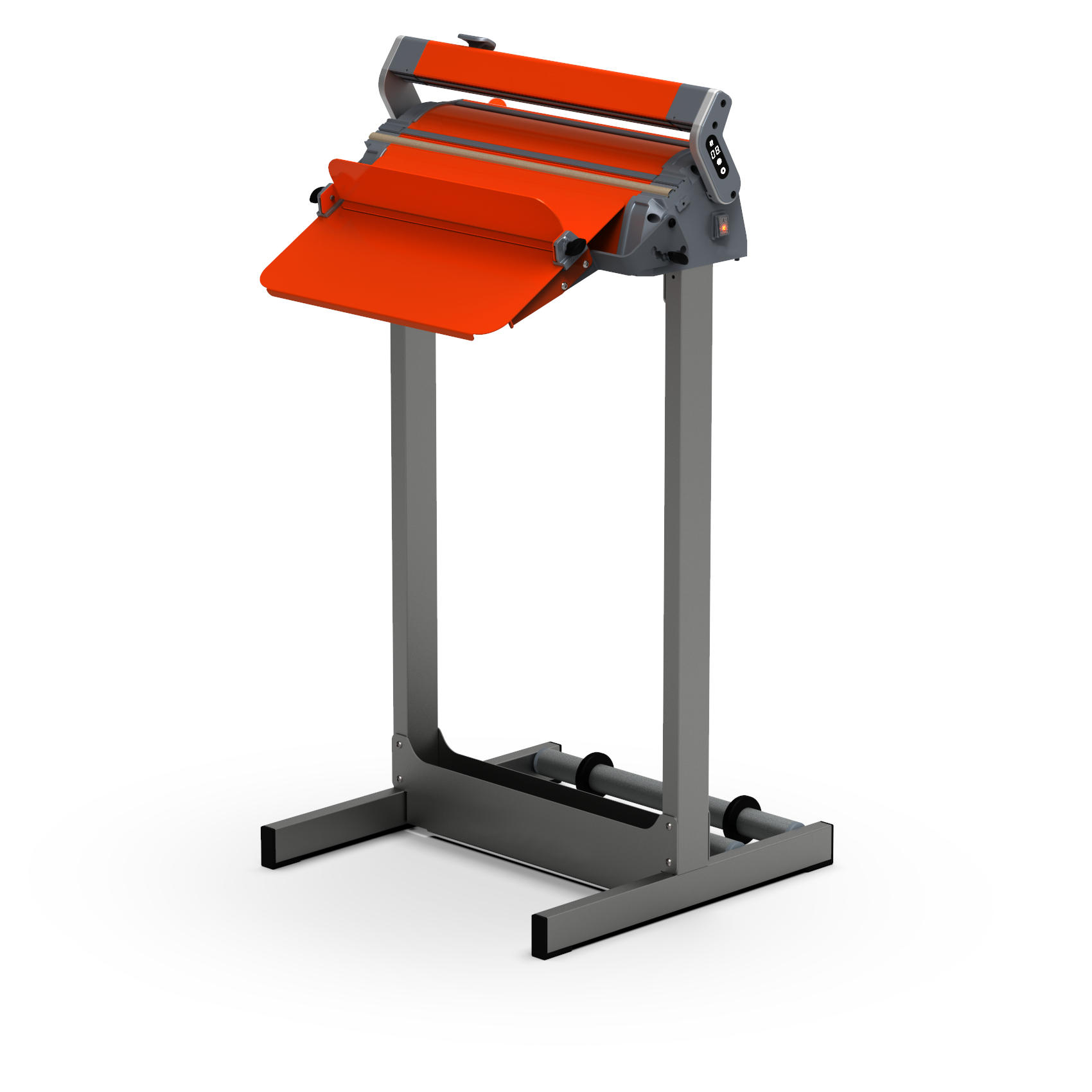

sealer with support and short table
sealer with support and support table

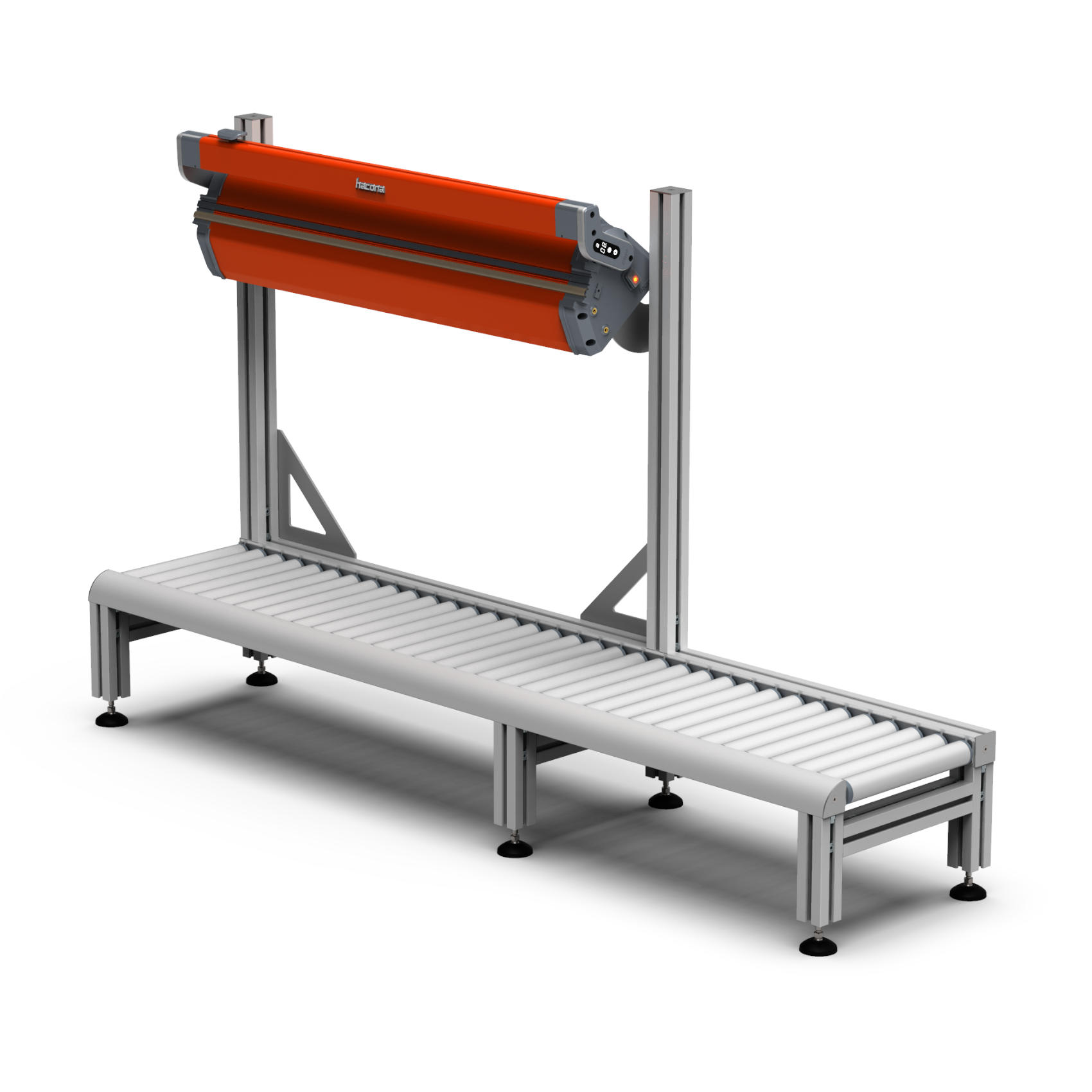

sealer with roll conveyor system
Quality products with quality parts
Every machine has its individual parts. Wear parts and service parts can be supplied from stock:
sealing wire set
silicone rubber
6pack replacement blades (6pcs/set)
cutting knife assembly
upper PTFE
lower PTFE
